Aluminum Wave Panel

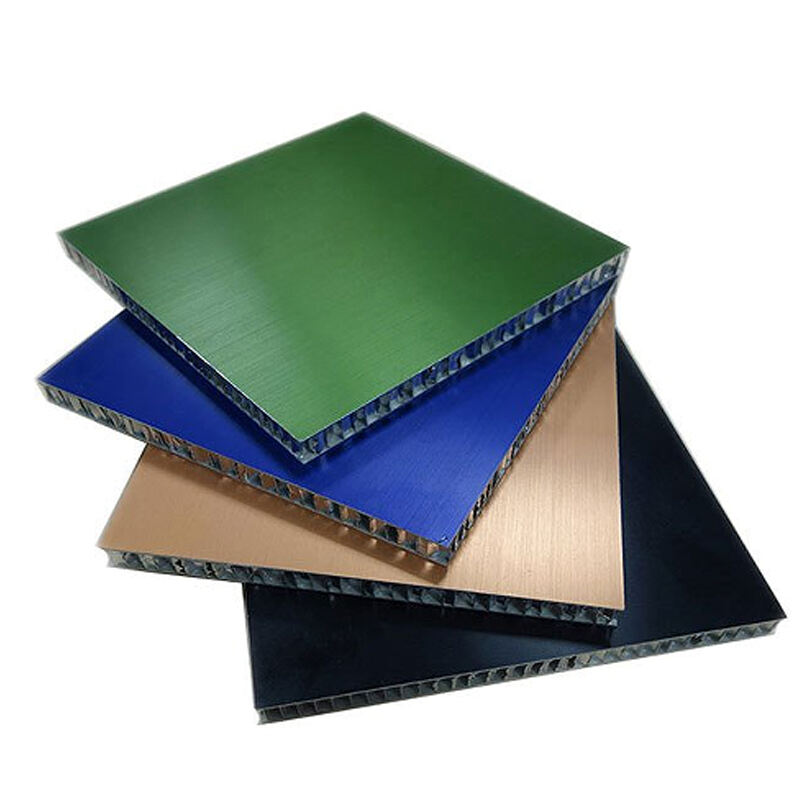

The Aluminum Honeycomb Composite Panel is a high-tech composite material with a"honeycomb sandwich"structure,consisting of high-strength aluminum alloy face and back sheets bonded to an aluminum honeycomb core through high-temperature and high-pressure lamination.This product features lightweight,high strength,sound insulation,thermal insulation,fire resistance,and excellent flatness,making it widely used in building facades,interior ceilings,feature walls,and furniture.
- Overview
- Parameter
- Recommended Products
The Aluminum Honeycomb Composite Panel is a new type of building material developed using aerospace composite technology.Its unique honeycomb structure provides superior performance.The face and back sheets are made of high-quality aluminum alloy,with surfaces treated by PVDF coating or durable baking paint,offering excellent weather resistance and corrosion resistance.The aluminum honeycomb core,composed of hexagonal cells,provides high strength,low density,and effective thermal and sound insulation.The product is manufactured using fully automated production equipment to ensure high quality and flatness.The Aluminum Honeycomb Composite Panel weighs only 1/5 to 1/10 of traditional panels while maintaining excellent wind resistance and dimensional stability.Its installation methods are flexible,allowing for easy maintenance and replacement.Additionally,the product can be customized in size,shape,color,and surface treatment to meet various architectural and decorative needs.
Parameter
| Parameter Name | Parameter Value |
| Material | Face/Back Sheets: High-Strength Aluminum Alloy (e.g., 3003, 5005); Core: Aluminum Honeycomb |
| Surface Treatment | PVDF Coating, Durable Baking Paint, Powder Coating, Wood Grain Transfer, Stone Composite, etc. |
| Specifications | Width: 1000mm - 2440mm; Length: 2000mm - 6000mm; Thickness: 8mm - 50mm |
| Weight | 2.0 - 5.5 kg/m² |
| Fire Resistance Rating | Class A1 (Non-combustible) |
| Acoustic Performance | Sound Absorption Coefficient: 0.05; Sound Insulation Index: 23 - 25dB |
| Thermal Performance | Thermal Conductivity: 2.25 - 2.7 W/m·K |
| Service Life | ≥20 years |
| Installation Methods | Dry Hanging, Adhesive Bonding, Hook-and-Loop Suspension, Butt Joint Installation, etc. |
| Application Scenarios | Building Facades, Interior Ceilings, Feature Walls, Furniture, Interior of Transport Vehicles, etc. |
